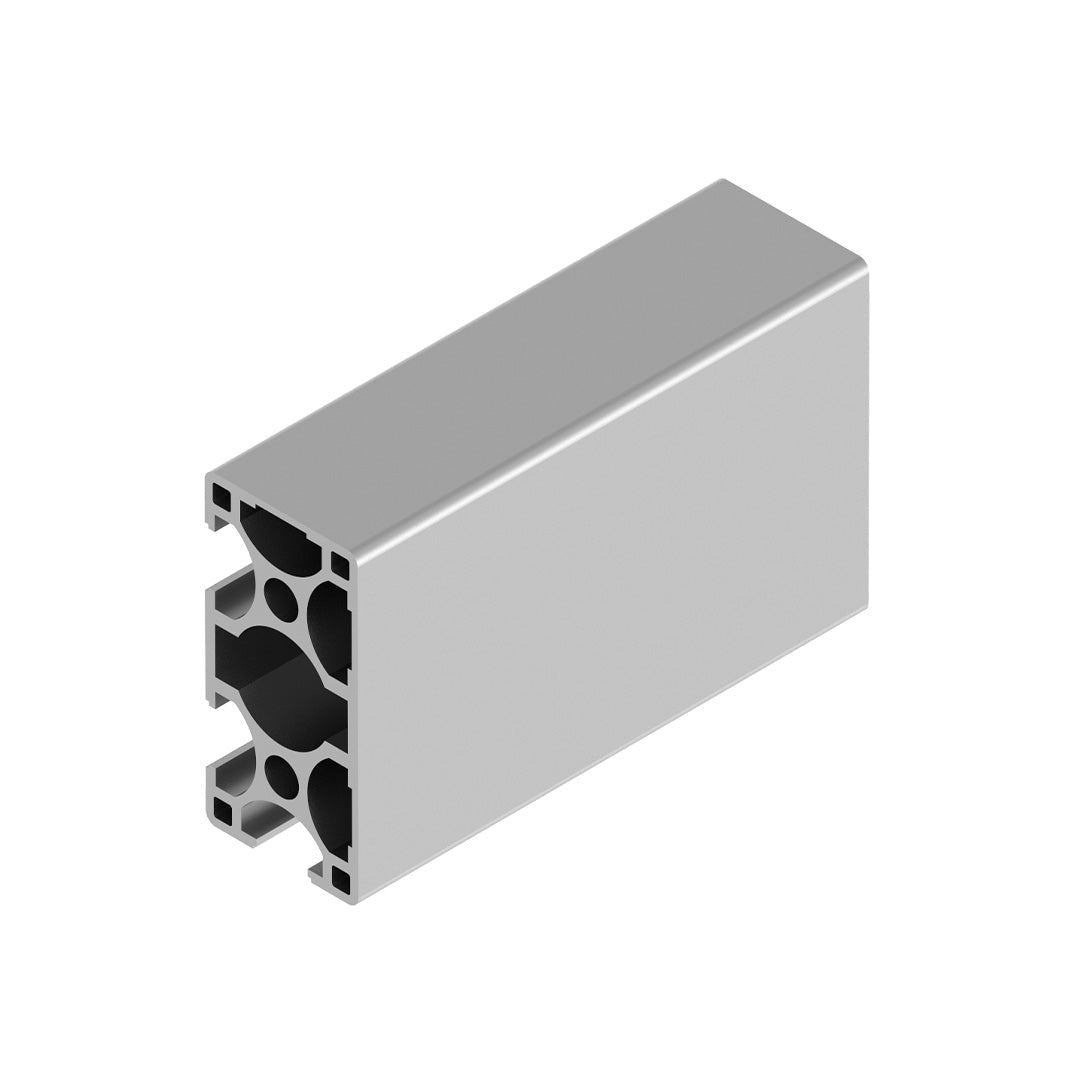

30×60-90 T-Slot Aluminium Extrusion Profile
Datasheet 30×60-90 T-Slot Aluminium Extrusion Profile

30×60-90 T-Slot Aluminium Extrusion Profile

Sale price$33.00 AUD
SKU: AL-3060-90

Price per meter excluding GST

To make purchase please CONTACT US

CALL (03) 9706 9022

  • Monday - Thursday: 8am - 4:30pm
  • Friday: 8am - 2:30pm

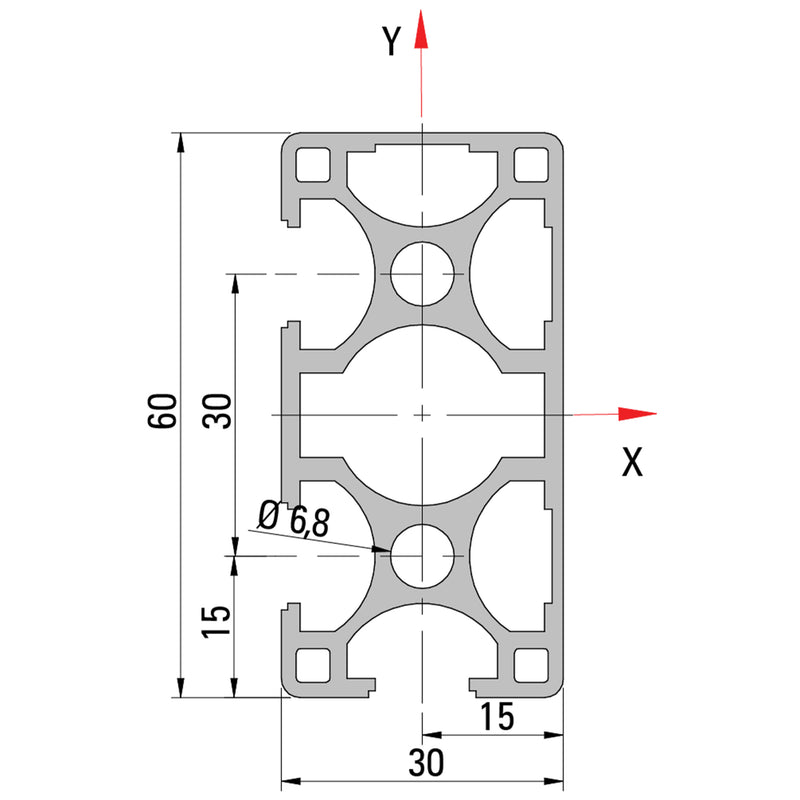

AME System 30×60-90 T-Slot Aluminium Extrusion Profile

  • 1x = 20.44 cm4
  • ly = 5.53 cm4
  • Wx = 6.81 сmз
  • Wy = 3.68 cm3
  • А = 5.63 сm2
  • Weight = 1.52 kg/m
  • Max. length: 6000 mm

The 30x60-90 profile's clear anodized finish ensures durability and corrosion resistance, while its weight of 1.52 kg/m and maximum length of 6000 mm make it versatile for both static and mobile heavy-duty applications.

30 and 40 series aluminium profiles

Joining Tips (Force)

  1. For lower load application use a combination of our 30 and 40 series aluminium profiles.
  2. Where possible, the vertical profiles should extend through the entire height.
  3. Where required, profiles should be assembled so that the larger section dimension opposes the load in order to achieve vertical strength.

Contact Us

To place an order you can call us on (03) 9706 9022 or use the contact form below.
