40×80 T-Slot Aluminium Extrusion Profile
Datasheet 40×80 T-Slot Aluminium Extrusion Profile

40×80 T-Slot Aluminium Extrusion Profile

Sale price$59.00 AUD
Sold out
SKU: AL-4080

Price per meter excluding GST

To make purchase please CONTACT US

CALL (03) 9706 9022

  • Monday - Thursday: 8am - 4:30pm
  • Friday: 8am - 2:30pm

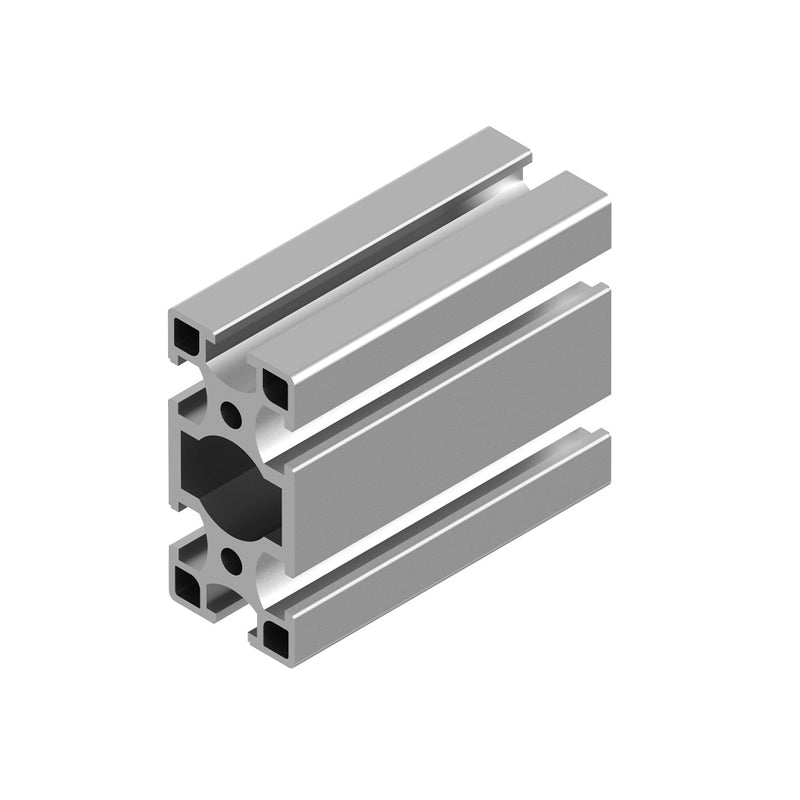

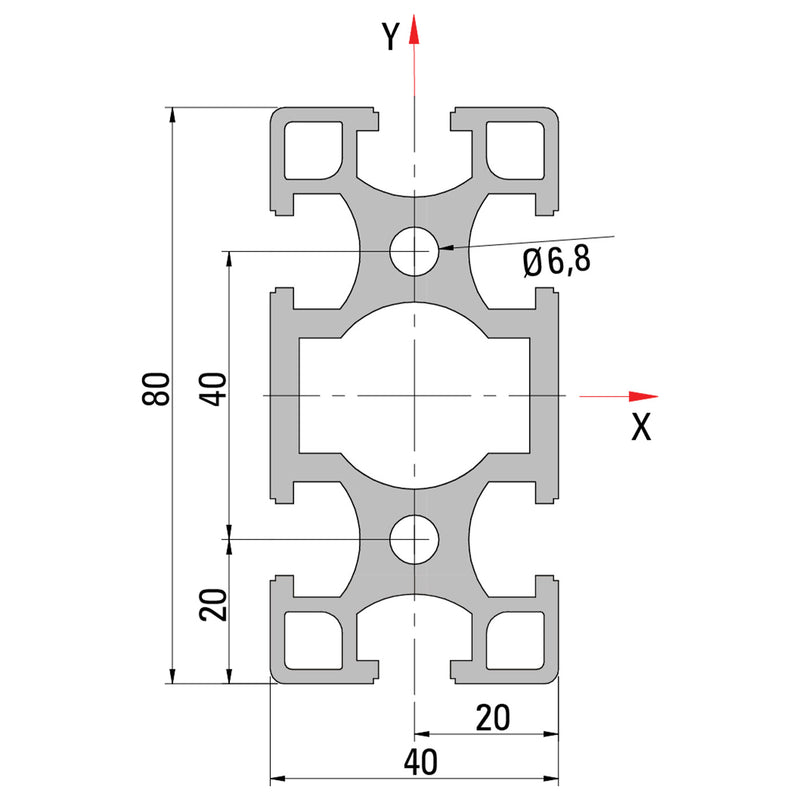

AME System 40×80 T-Slot Aluminium Extrusion Profile

  • Ix = 63.45 cm4
  • ly = 17.94 cm4
  • Wx = 15.86 сm3
  • Wy = 8.97 cm3
  • A = 11.37 cm2
  • Weight = 3.07 kg/m
  • Max. length: 6000 mm

Engineered for optimal material strength, all profiles boast a natural anodised finish that ensures resistance against scratching and corrosion. Their uniform modular dimensions ensure complete interchangeability of connecting elements and accessories.

30 and 40 series aluminium profiles

Joining Tips (Force)

  1. For lower load application use a combination of our 30 and 40 series aluminium profiles.
  2. Where possible, the vertical profiles should extend through the entire height.
  3. Where required, profiles should be assembled so that the larger section dimension opposes the load in order to achieve vertical strength.
