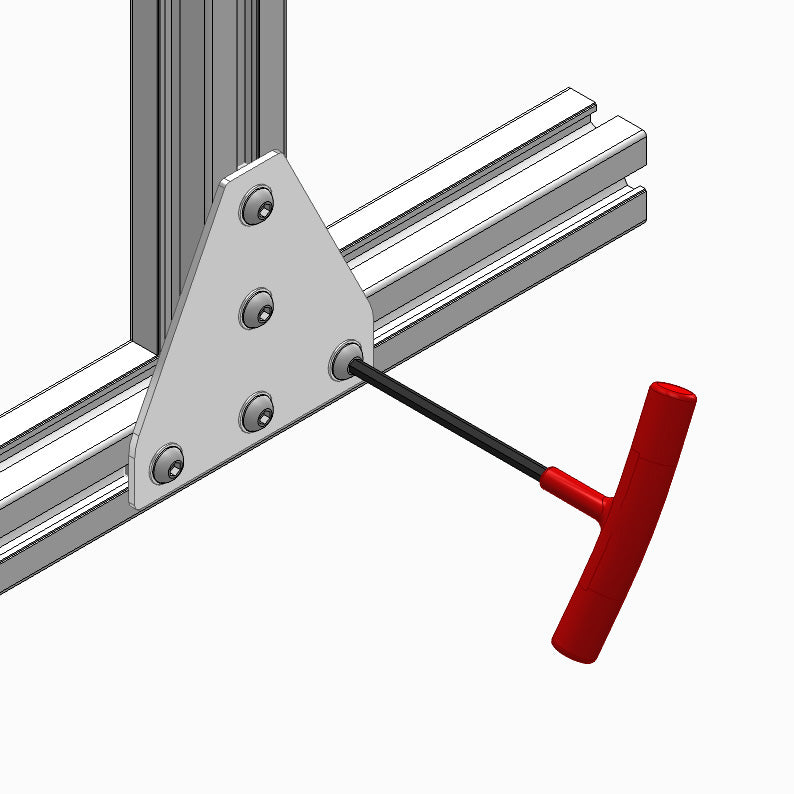

AME System Connection Bracing Steel Plate for T-slot profiles T-Type
-
Please note: This product can be purchased individually or bundled with components for mounting to 30 or 40 series profiles. Select from the dropdown options available.
Steel bracing plate for reinforcing 90° connections in T-slot aluminium profile systems.
T-type configuration distributes load across both axes, increasing joint stiffness where frames are subject to movement or repeated load.
Specifications
- Size: 120 × 120 mm
- Thickness: 3 mm
- Material: Zinc-plated mild steel
- Type: T-bracing plate for corner reinforcement
Function
- Increases rigidity at corner joints
- Reduces flex under load
- Suitable for static frames and mobile structures
Integration
- Mounts directly to standard T-slot profiles
- Compatible with AME System slot systems
Typical use
- Workstations
- Machine frames
- Trolleys and carts
- Guarding structures
- Designed for straightforward installation without modification to existing frames.
AME System's Bracing Elements are essential for anyone looking to ensure the stability and longevity of their T-slot profile structures. The Foundation Bracket securely anchors profiles to the floor, preventing shifts and maintaining structural integrity, which is crucial for solid foundations. Meanwhile, the T-Type and L-Type Bracing Plates reinforce profile connections—whether straight or at corners—offering added strength and durability. These bracing elements are vital for maintaining the rigidity of your framework, ensuring your industrial setup remains stable and reliable under demanding conditions.
