Why Hidden Cable Management Matters
Modern workstations and machine assemblies often require power cables, network connections, sensor wiring, pneumatic control cables and other services to be routed throughout the structure.
Poor cable management can lead to:
- Damaged cables from accidental impact
- Difficult troubleshooting and maintenance
- Cluttered work areas
- Increased installation time during upgrades
- Reduced equipment aesthetics
By incorporating cable management during the design stage, wiring can be concealed within the profile structure while remaining accessible when needed.
Using the Profile Structure as a Cable Pathway
The T-slot design of 40 Series aluminium profiles creates natural routing paths for cables throughout a frame. Cables can be directed along vertical and horizontal members and secured at key points without drilling or permanent modifications.
This approach is particularly useful for:
- Height-adjustable workstations
- Control room consoles
- Industrial workstations
- Machine guarding systems
- Automated production equipment
- Testing and inspection stations
The modular nature of aluminium profiles also allows cable routes to be modified as equipment evolves.

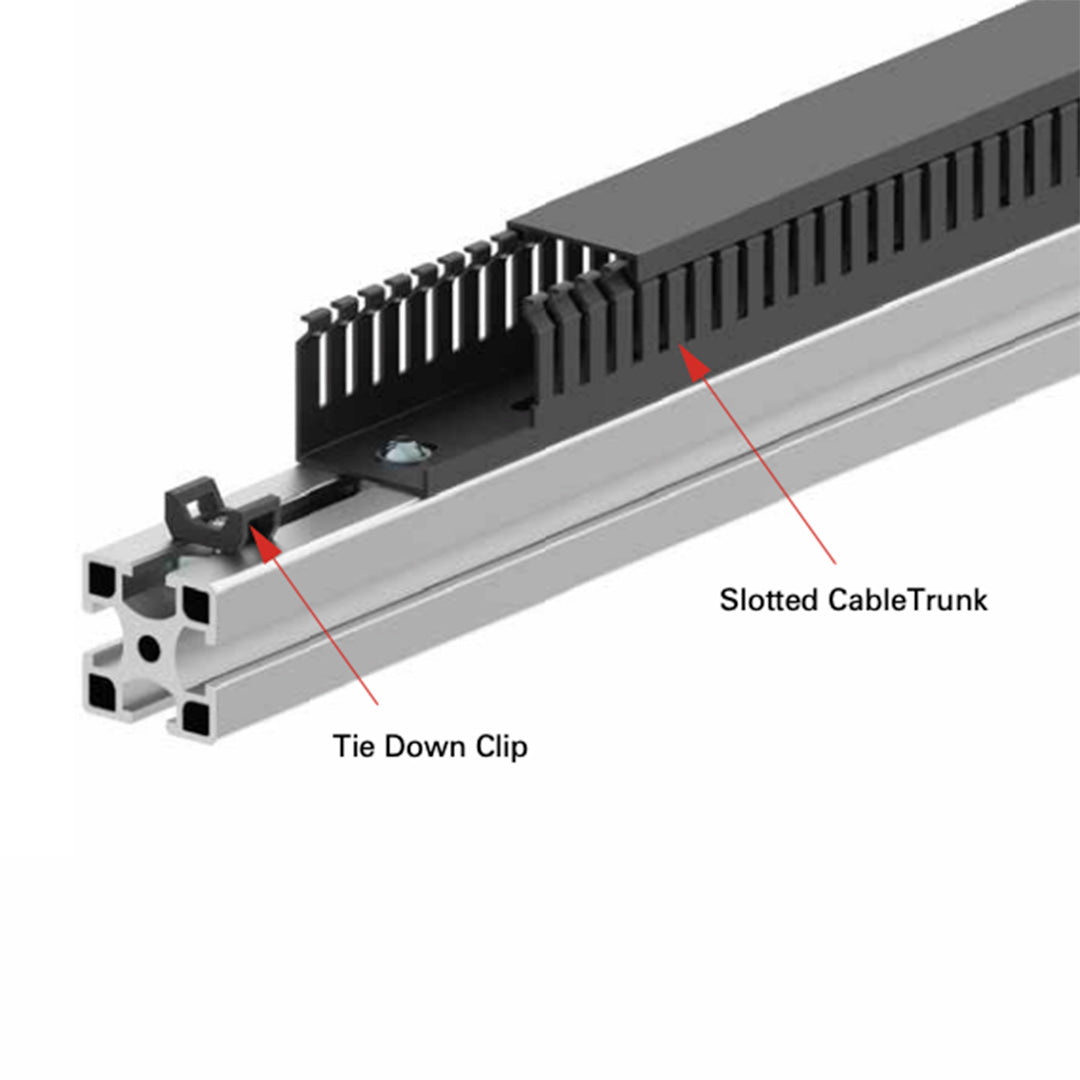

Slotted Cable Trunk 40x40mm
For applications requiring larger cable capacity and greater protection, the AME System Slotted Cable Trunk PVC Duct 40x40mm provides an effective solution.
Key Features
- Designed to suit 40 Series profiles
- Available in black or grey
- 40 x 40mm cable capacity
- 2000mm length
- Removable snap-on cover
- Secure mounting directly to T-slot profiles
- Multiple cable exit points through slotted side walls
- You can see the DATASHEET here
The removable cover allows technicians to quickly access wiring during maintenance or system upgrades. Meanwhile, the slotted design keeps cables retained within the duct while allowing individual wires to exit exactly where required. This is particularly useful when multiple devices are mounted along a workstation or machine frame.
Creating a Clean Integrated Installation
Rather than running cables externally along a frame, the cable trunk can be mounted directly onto the profile face to create a dedicated cable channel.
Use: The AME System Cable trunk, Button head socket screw M6x12, M6 zinc washer, M6 Slot Nut (all available in our store).
Typical applications include:
Control Room Consoles
Control rooms often contain multiple monitors, communication devices, control systems and power supplies. Cable trunks help organise and conceal large cable bundles while maintaining easy access for future equipment changes.
Industrial Workstations
Operator workstations frequently require power, data and peripheral connections. Integrated cable management reduces clutter and improves workstation presentation.
Machine Frames
Sensors, actuators and control devices generate significant wiring requirements. Routing cables through dedicated ducts protects them from accidental damage while simplifying maintenance.
Securing Cable Bundles with Cable Saddle Tie Down Clips
Not every cable run requires a duct. In many situations, cable bundles simply need to be secured neatly along a profile structure.
The AME System Cable Saddle Tie Down Clip provides a simple and effective solution.
Features
- Durable black nylon construction
- Suitable for 30 and 40 Series profiles
- Compatible with M5 mounting hardware
- Can also be mounted to benchtops and other surfaces
- Suitable for a wide range of cable ties
The saddle provides a secure anchor point for cable ties, allowing installers to route cables precisely where required. This is particularly useful for:
- Sensor cables
- Network cables
- Pneumatic control wiring
- Temporary equipment installations
- Secondary cable routing outside main ducts
The central mounting hole allows the saddle to be installed using standard profile fasteners, creating a flexible and highly configurable cable management system.
Combining Cable Trunks and Cable Saddles
The most effective installations often combine both solutions.
A typical approach is to:
- Route primary cable bundles through the slotted cable trunk.
- Exit cables through the trunk slots at required locations.
- Use cable saddle tie-down clips to secure individual cable runs to equipment or profile members.
- Maintain service loops where future adjustments may be required.
This creates a professional installation that balances cable protection, accessibility and flexibility.
Designing for Future Expansion
One of the greatest advantages of aluminium profile systems is adaptability. Unlike welded structures, profile frames can be expanded or modified as operational requirements change.
By integrating cable management components from the beginning, future upgrades become significantly easier. Additional sensors, displays, devices or power supplies can often be added without rebuilding the cable routing system.
Conclusion
Effective cable management improves safety, simplifies maintenance and enhances the overall appearance of industrial equipment. By combining 40 Series aluminium profiles with AME System's Slotted Cable Trunks and Cable Saddle Tie Down Clips, designers can create hidden and organised cable pathways that remain accessible for future modifications.
Whether you're building a control room console, industrial workstation or custom machine frame, integrating cable management into the structure from the start will result in a cleaner, more professional and more maintainable solution.
