Drilling Jig 8mm for 30 and 40 series profiles
Choose type
Ships from Melbourne. Metro delivery 2–5 days.
Freight calculated at checkout.
Choose options
Choose type
Ships from Melbourne. Metro delivery 2–5 days.
Freight calculated at checkout.
Choose type
Ships from Melbourne. Metro delivery 2–5 days.
Freight calculated at checkout.
3D-Printed Drilling Jig for 30 & 40 Series Profiles
Position access holes accurately and consistently with the AME System Drilling Jig. Designed specifically for AME aluminium profiles, the jig helps locate 8 mm holes when connecting perpendicular profile members within a frame.
The jig slides along the profile slot and locks securely at the required drilling position using the integrated M6 knob. Hardened steel drill guides help maintain drill alignment and protect the 3D-printed jig during repeated use.
Colour Notice: This product is available in various colours. The colour supplied may vary depending on current stock availability

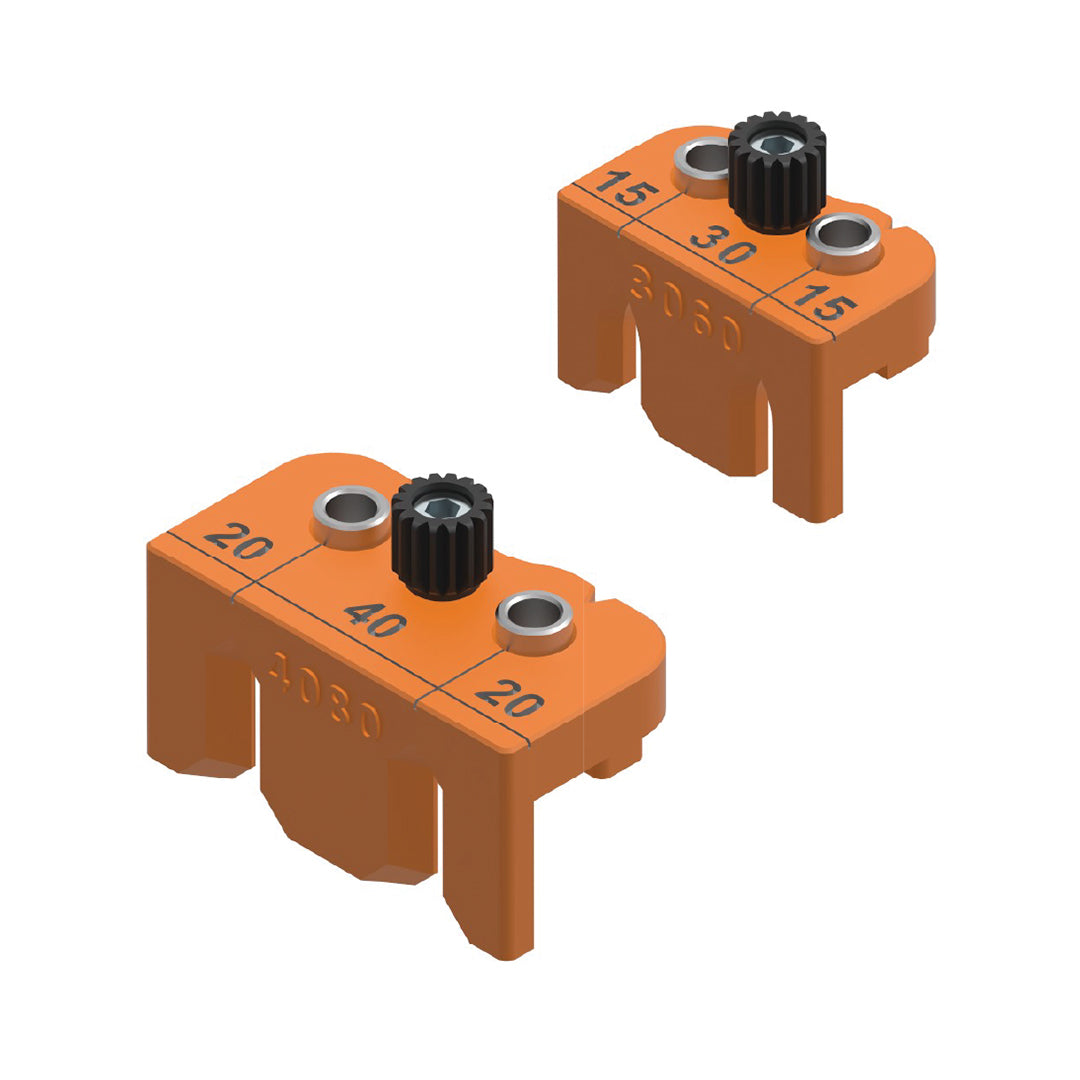

Available Options
-

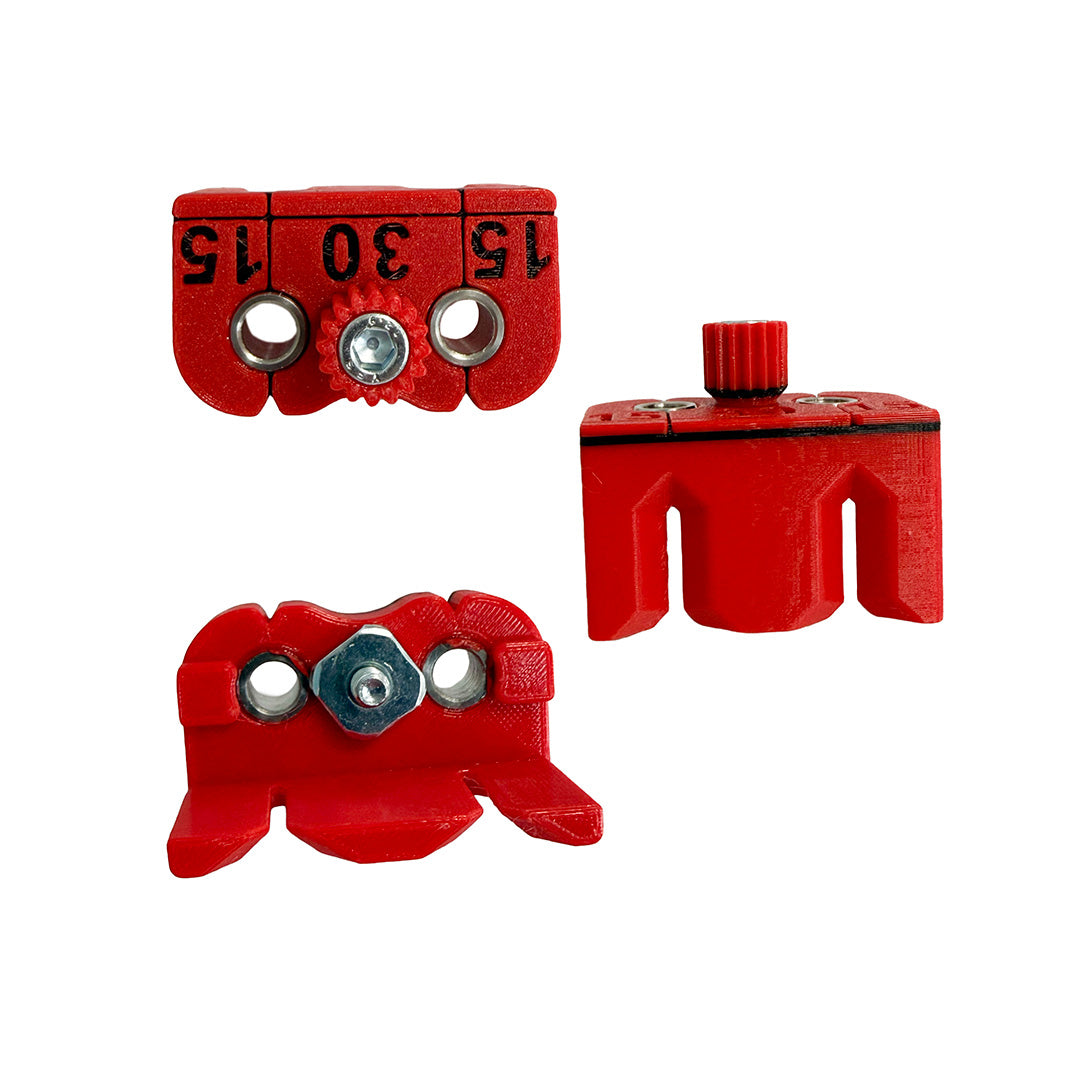

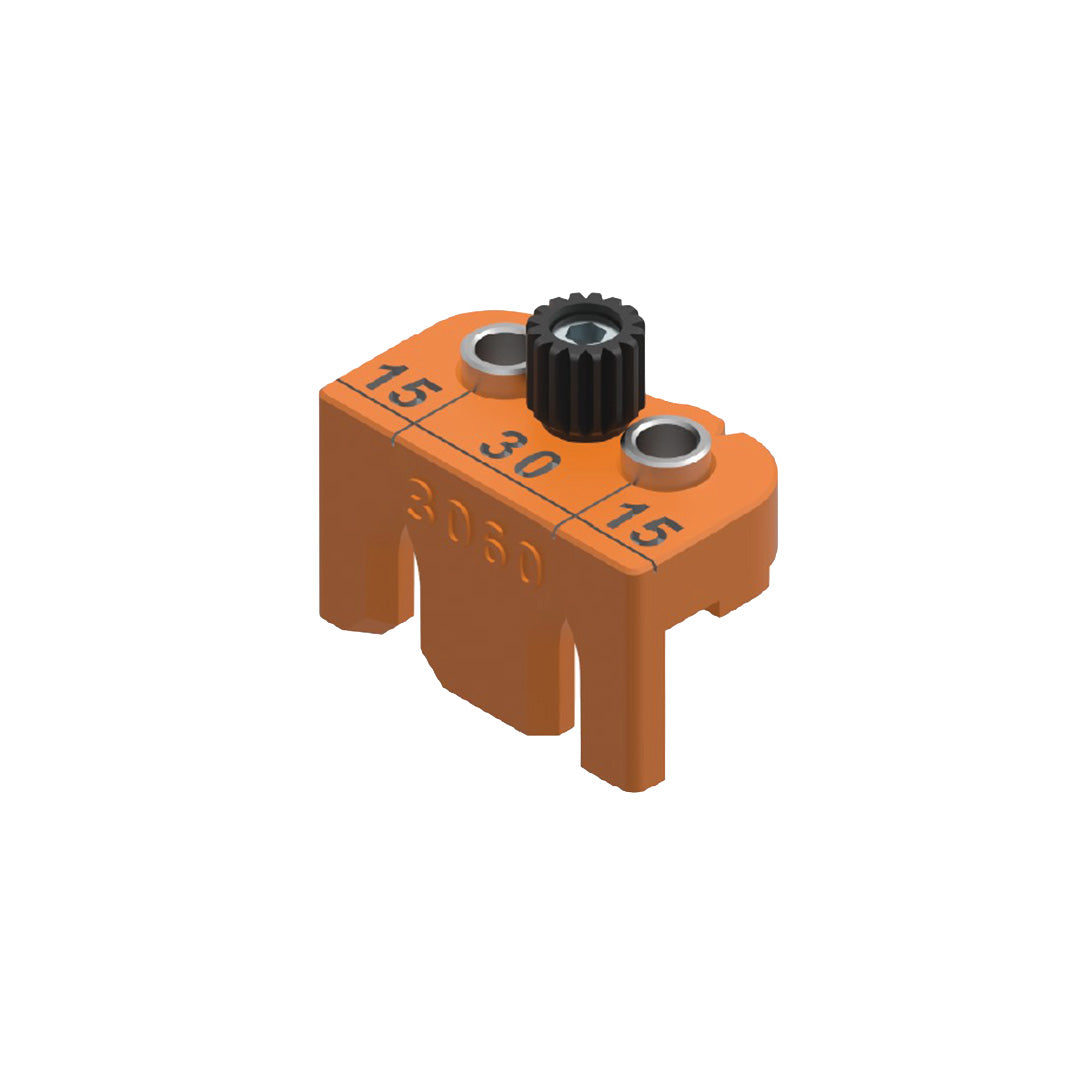

Drilling Jig 30 – designed for AME 30 Series profiles
Hole layout: 15 - 30 - 15 mm -

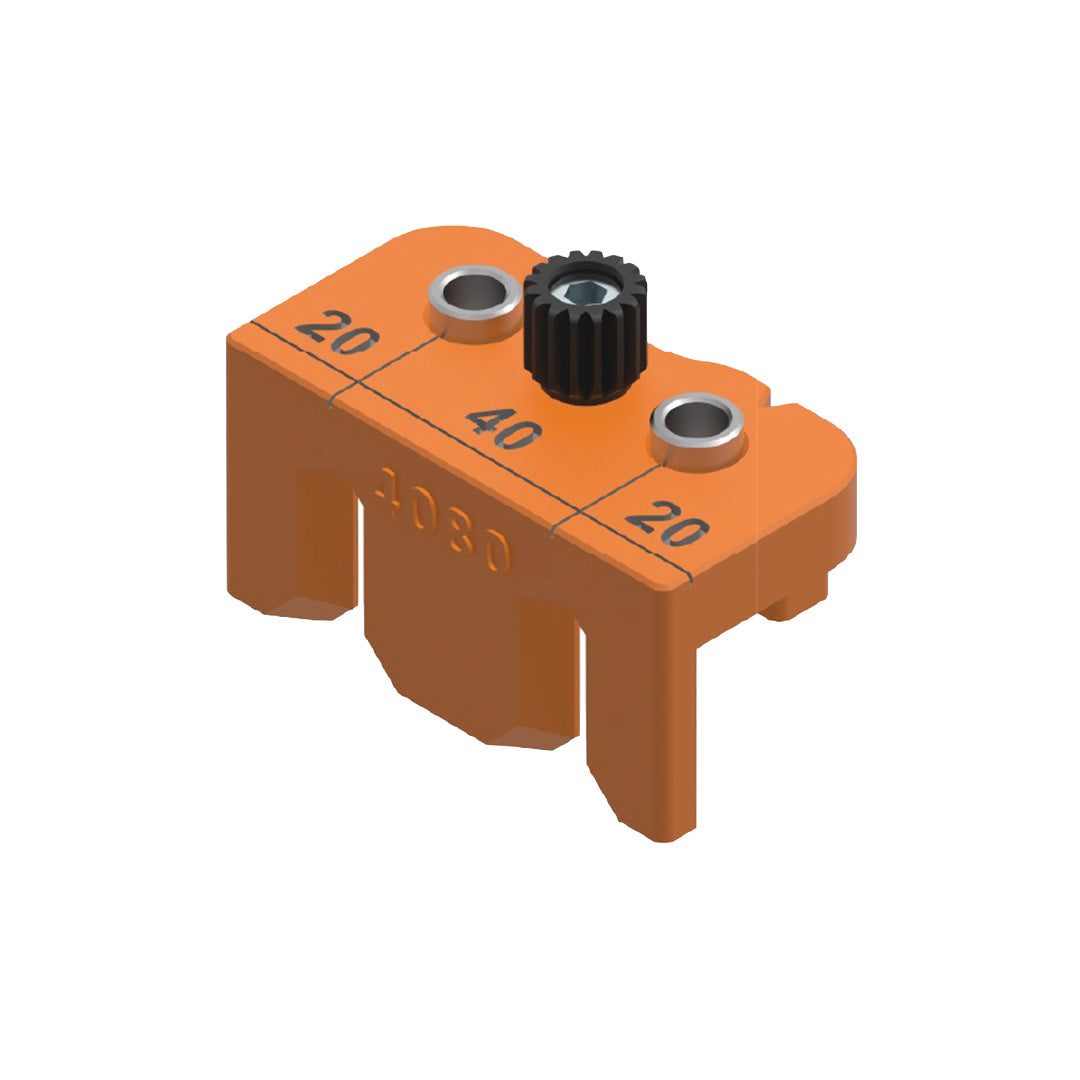

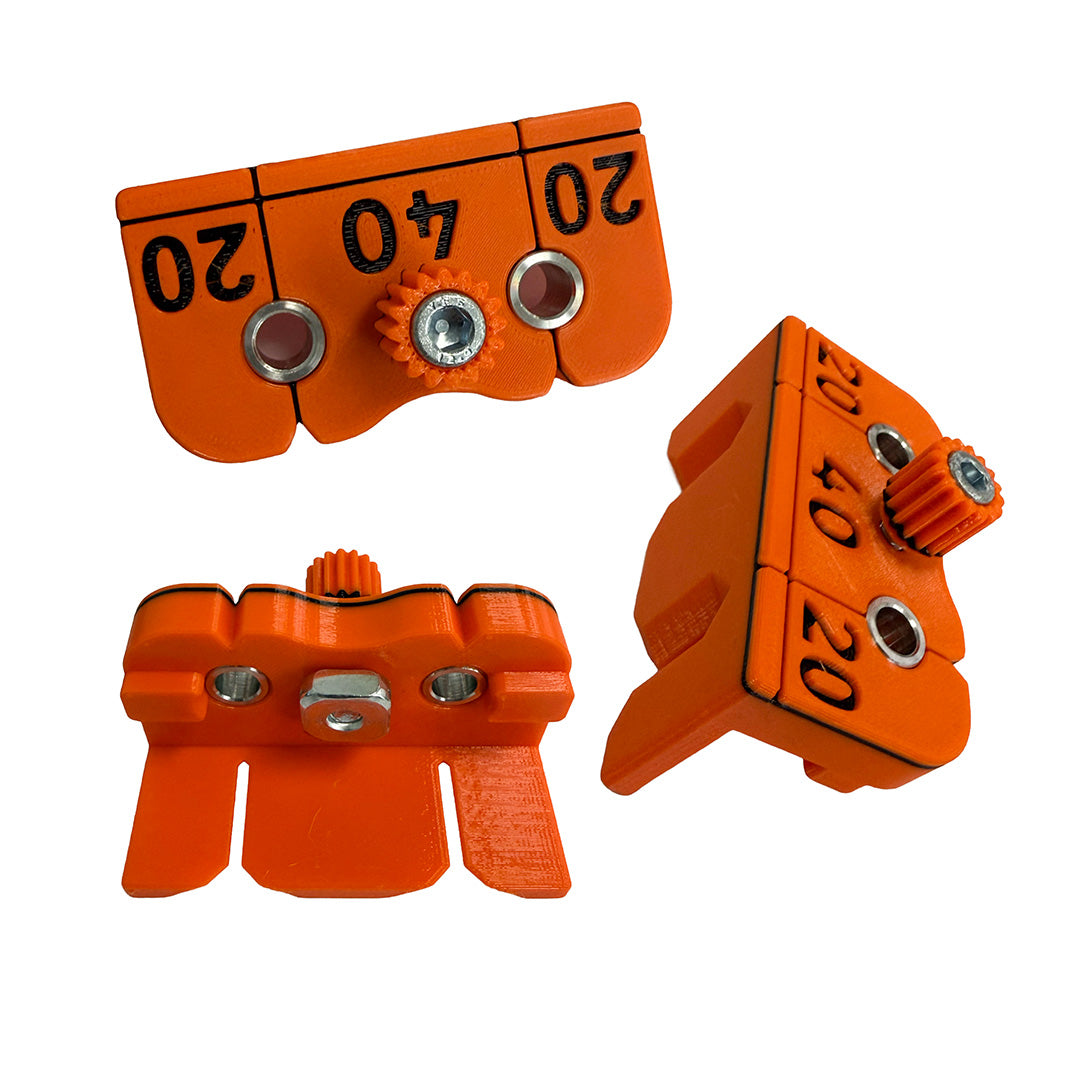

Drilling Jig 40 – designed for AME 40 Series profiles
Hole layout: 20 - 40 - 20 mm
Key Features
- Designed for AME System 30 and 40 Series profiles
- Accurate and repeatable positioning of access holes
- Hardened steel drill guides
- Suitable for use with an 8 mm drill
- Integrated M6 locking knob
- Slides along the profile slot for easy positioning
- Compact, lightweight 3D-printed construction
- Clearly marked reference dimensions
- Helps reduce measuring and drilling setup time
Spend less time measuring and more time building. The AME System Drilling Jig helps you position and drill accurate 8 mm access holes with confidence. Hardened steel guides keep your drill aligned, while the locking knob holds the jig securely in place—making repeat drilling quicker and easier.
Choose the jig to suit your AME 30 or 40 Series profiles. Colours vary depending on stock availability.
How to Use
- Mark the required hole position on the aluminium profile.
- Select the drilling jig that matches your profile series.

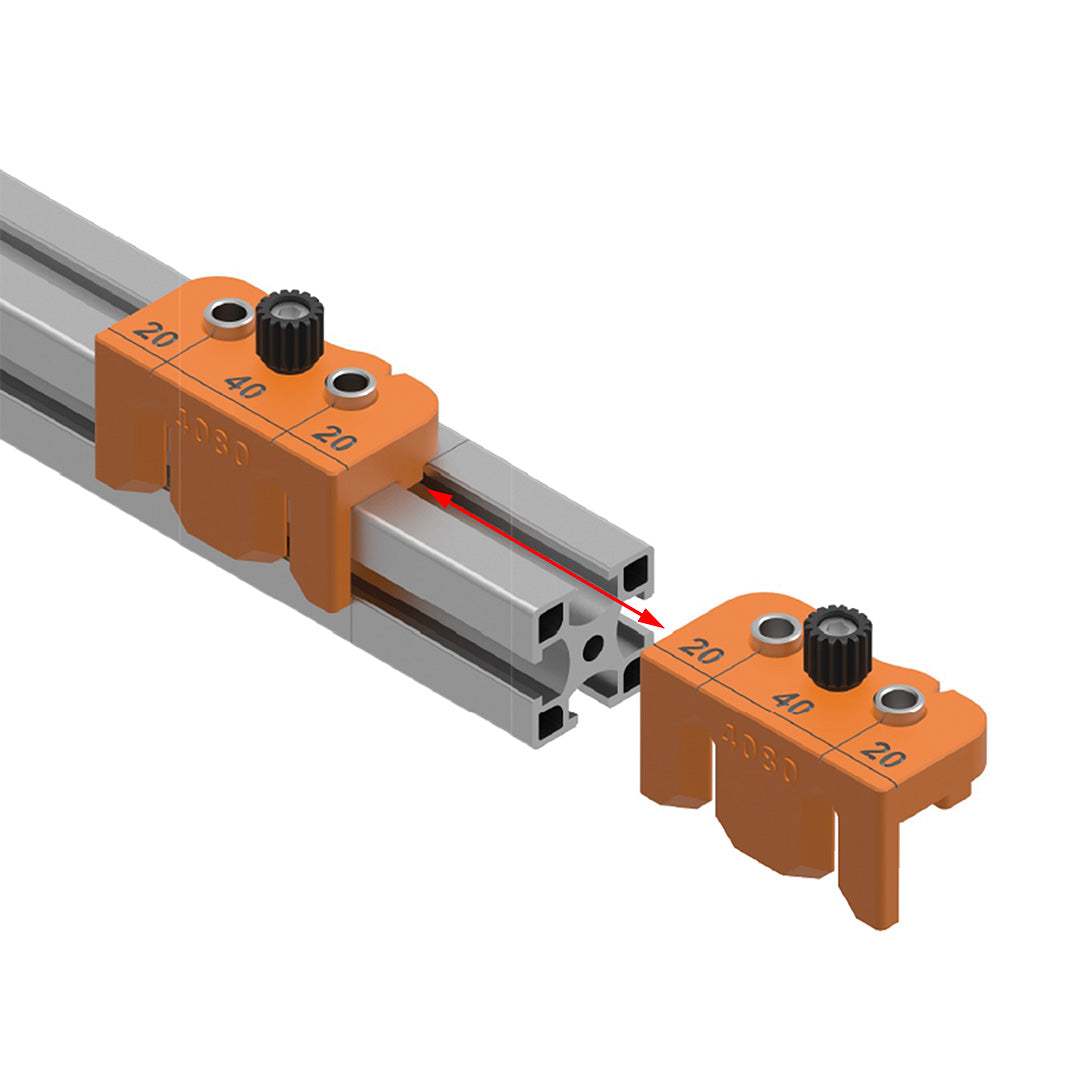

- Slide the jig along the profile to the marked position.
- Align the pencil mark with the outside wall of the jig.

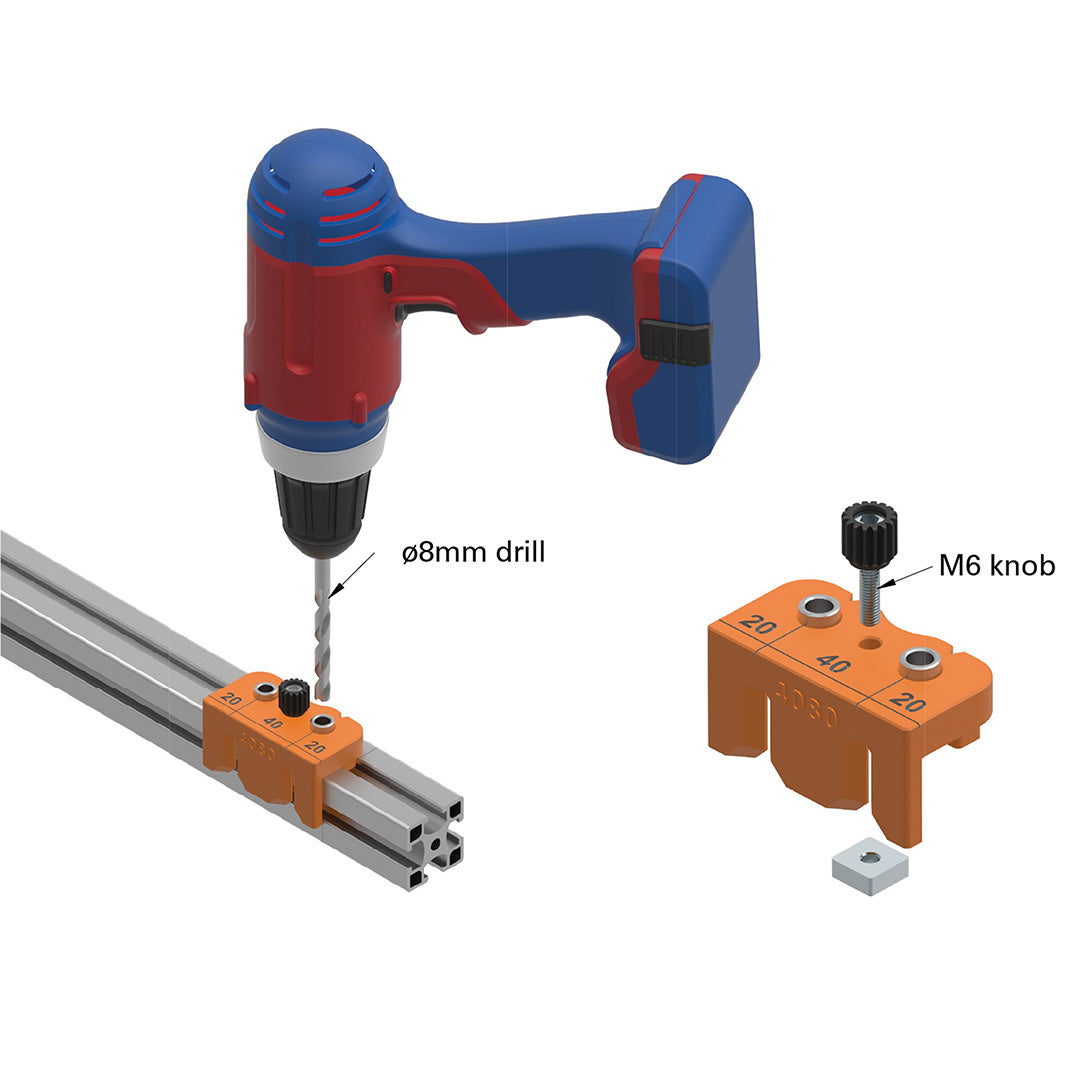

- Turn the black M6 knob clockwise to secure the jig.Drill through the hardened steel guide using an 8 mm drill.
drilling accessory 30 series
Precision drilling jigs options
Make your next build easier with accurate, repeatable drilling. Designed for AME System 30 Series aluminium profiles, the Drilling Jig 30 helps you position 8 mm access holes while reducing measuring and setup time.
Hardened steel drill guides help keep your drill aligned, and the integrated M6 locking knob secures the jig at your chosen position. The lightweight 3D-printed body slides along the profile slot, allowing you to reposition it easily as your frame takes shape.
Colours vary depending on stock availability.
Drilling Accessory 40 series
Precision drilling jigs
Spend less time measuring and more time building. Designed for AME System 40 Series aluminium profiles, the Drilling Jig 40 helps you position and drill accurate 8 mm access holes with confidence.
Hardened steel drill guides help maintain alignment, while the integrated M6 locking knob holds the jig securely in position. Its compact, lightweight 3D-printed body slides along the profile slot for easy adjustment, making repeated drilling quicker and more consistent.
Colours vary depending on stock availability.
