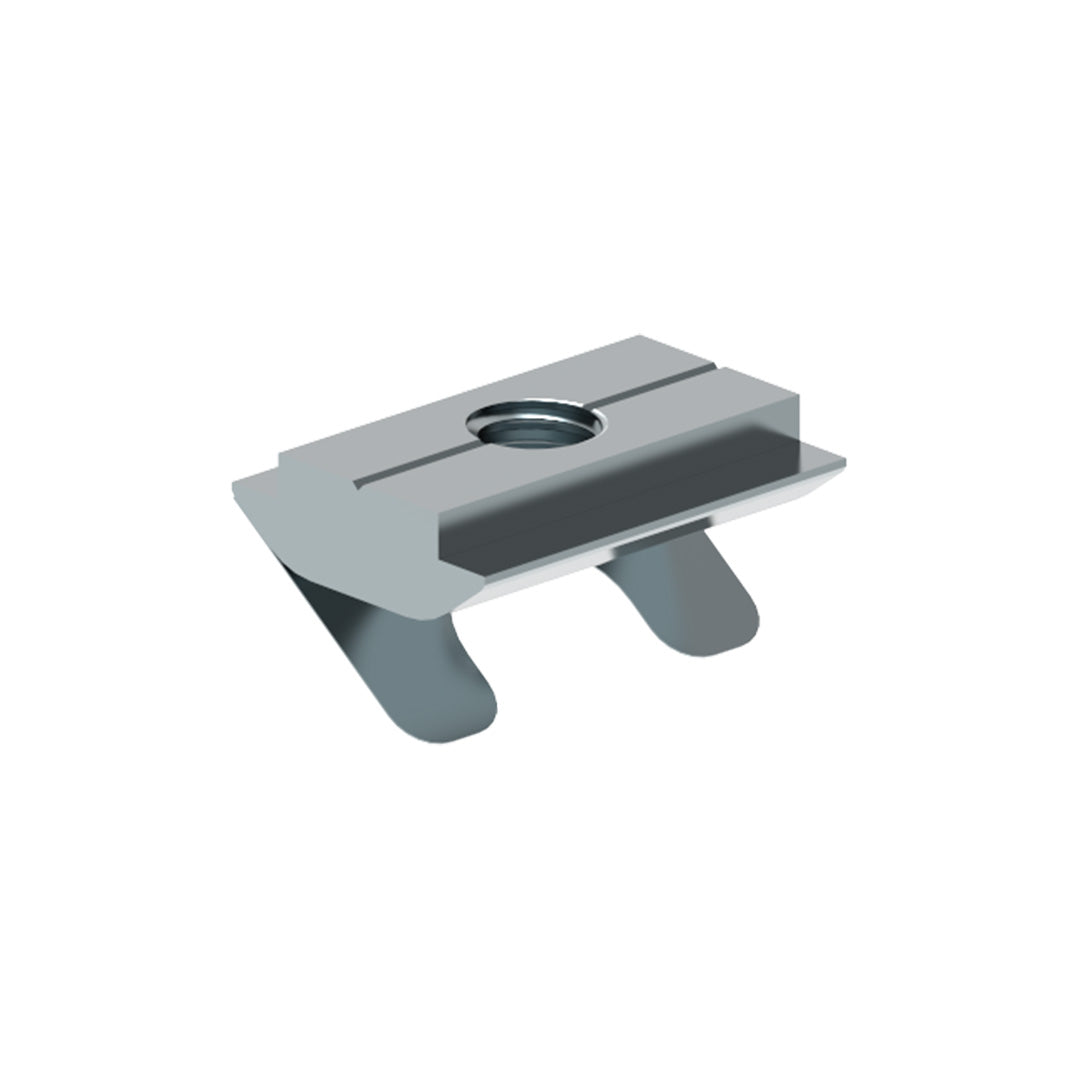

AME System T-Slot Profile M8 Spring Nut, 40 Series Fastener in metallic colour
AME System T-Slot Profile M8 Spring Nut, 40 Series Fastener, bottom view, in grey colour

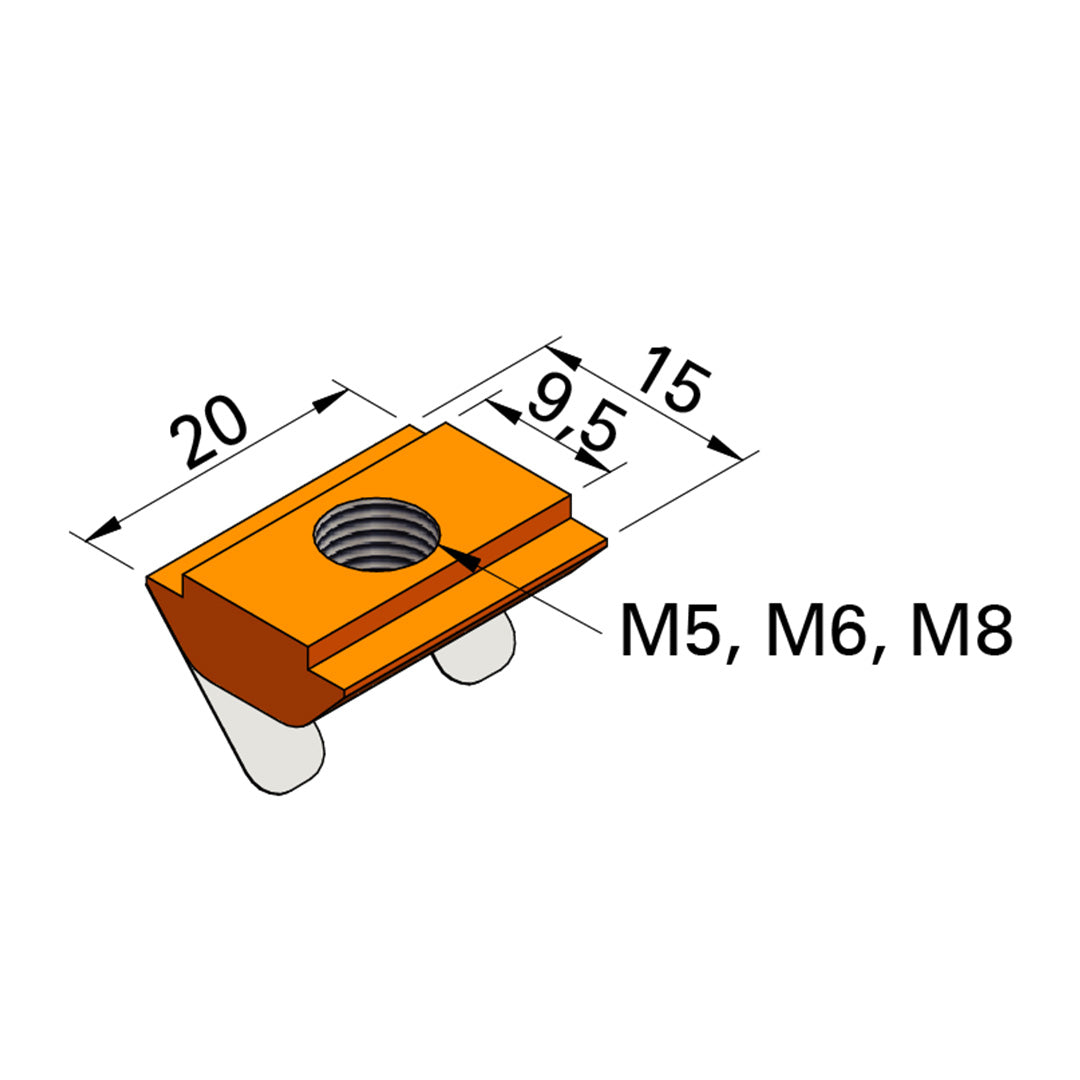

AME System T-Slot Profile M8 M6 M5 Spring Nut, 40 Series Fastener datasheet drawing, showing dimensions 20 on 15 and 9.5mm15

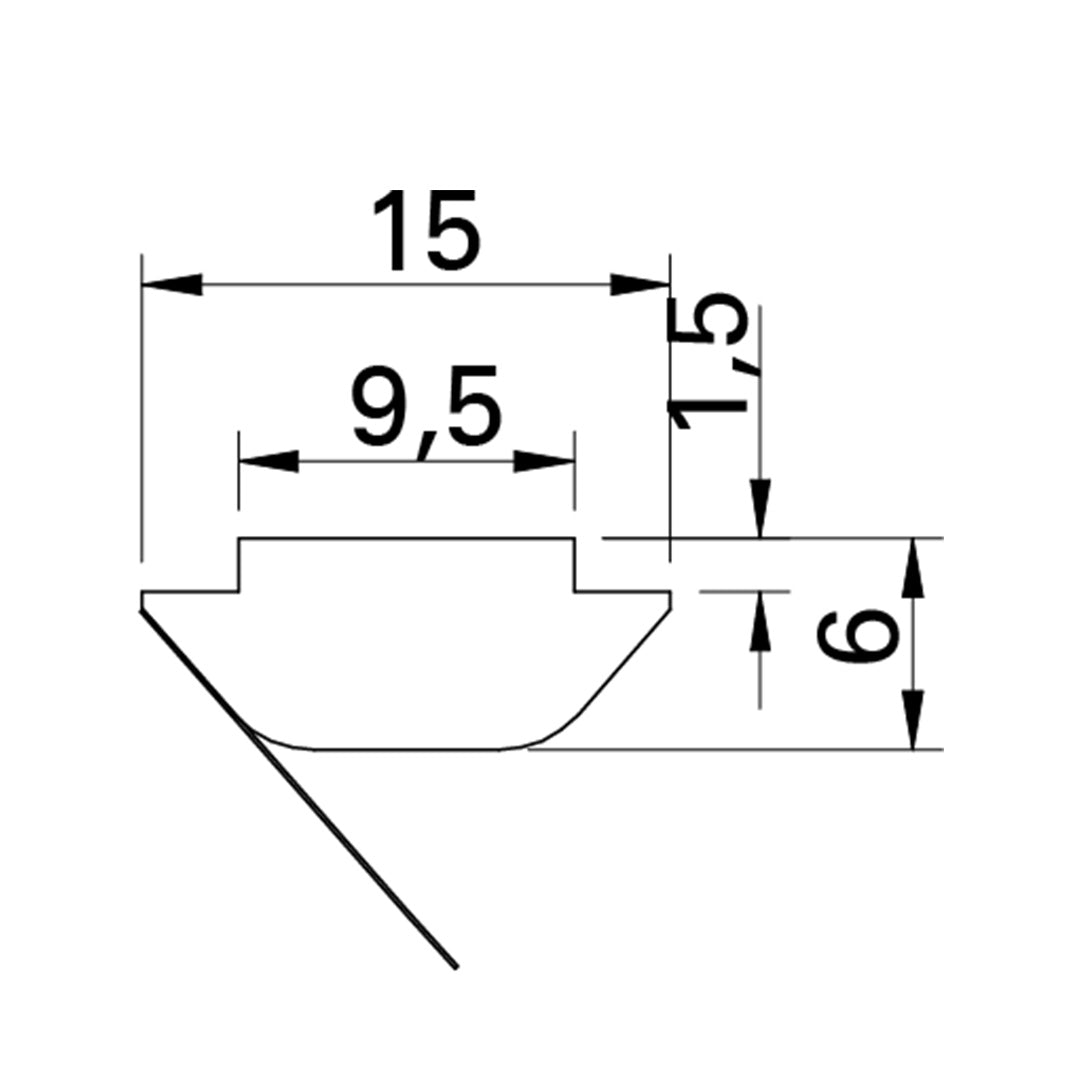

AME System T-Slot Profile M8 M6 M5 Spring Nut, 40 Series Fastener datasheet drawing, showing dimensions 15 and 9.5mm, 6mm thick

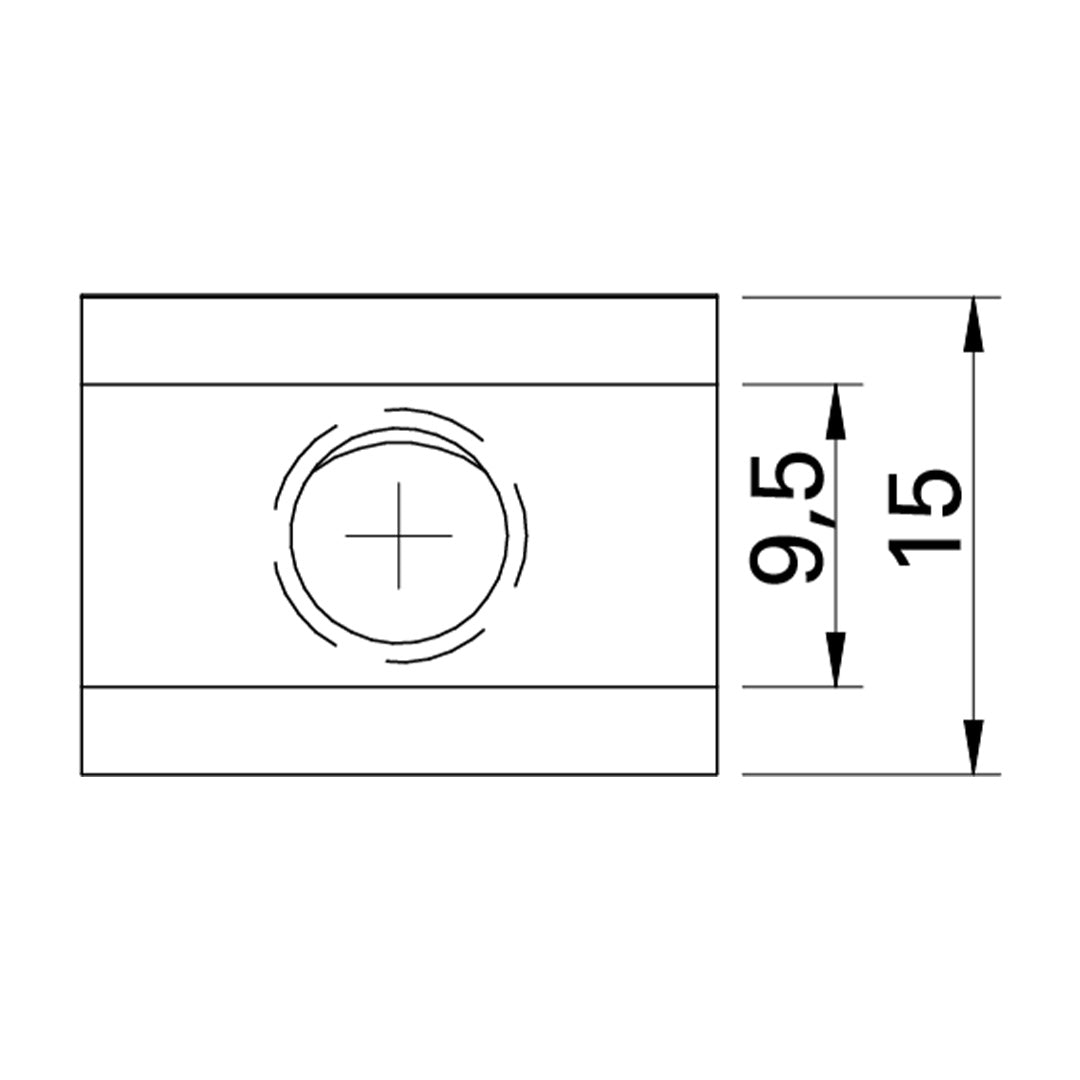

AME System T-Slot Profile M8 M6 M5 Spring Nut, 40 Series Fastener datasheet drawing top view, showing dimensions 15 and 9.5mm15

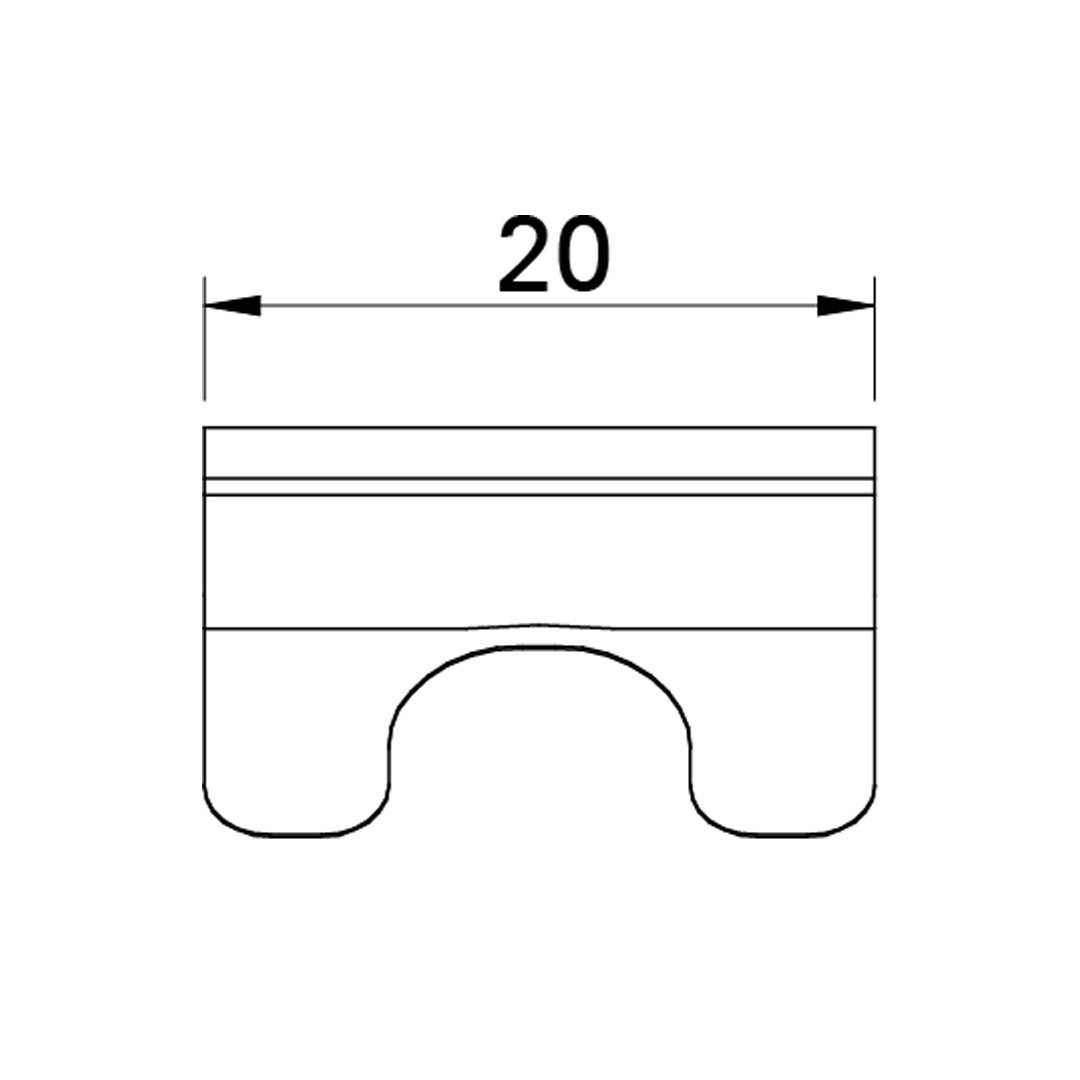

AME System T-Slot Profile M8 M6 M5 Spring Nut, 40 Series Fastener datasheet drawing, showing 20mm width

T-Slot Profile M6 Spring Nut

Sale price$1.30 AUD

Shipping calculated at checkout

SKU: FA-SP-M6
Quantity:
Pickup available at Online Store Usually ready in 24 hours

T-Slot Profile M6 Spring Nut

Online Store

Pickup available, usually ready in 24 hours

7-11 Rodeo Drive
Factory 9
Dandenong South VIC 3175
Australia

+61397069022
AME System T-Slot Profile M6 Spring Nut, 40 Series Fastener for face mounting within the profile slot.
  • Material: Zinc Plated Mild Steel
  • To Suit M6 bolts
  • Suitable for heavier loads
  • Can be inserted at any point in the profile slot
Why choose AME System M6 Spring Nut?
Designed with a robust spring mechanism and an M8 thread, this fastener offers unparalleled versatility and reliability, ideal for a myriad of technical applications within AME system T-slot profiles. The Spring nuts draw card is its ability to be inserted into the T-Slot from the face rather than needing to be slid into the end like a standard square nut. This allows further modifications to already assembled frames. The Spring also holds the nut in place when working in vertical applications for added ease of assembly. The perfect combination of flexibility and function for your fastening needs.
